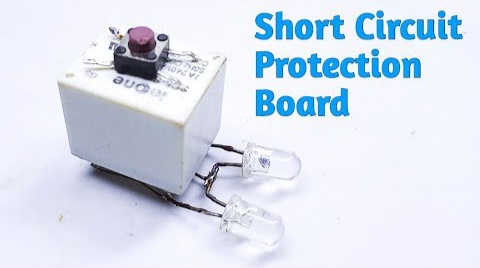

Short Circuit Protection Board-Using Relay:-Hey Guys Welcome To My New Blog Post Main Aaj Ki Video Me Ham Short Circuit Protection Board Banayge:

Components Need

1.Relay

2.Red & Green Led

3.1k Resistor

4.Push Botton

Relay Short Circuit Protection:-Yah Circuit Banana Bahut Simple Hai Or Aap Ese Kisi Bhi Battery Ya Other Kisi Me Bhi Connect Kar Sakte Ho,

 Relay Short Circuitircuit Protection:-

Agar Aap 12v Ka Relay Use Karoge Is Circuit Me To Aap Is Circuit Ko 12v Ka Protection Circuit Bana Sakte Ho,

Aap Jitne Volt Ka Relay Lagaoge To Aap Utne Voltage Ka Protection Circuit Bana Sakte Ho,

Diy Short Circuit Protection Using Relay:-

Guys Yah Circuit Ko Aap Jarur Banana Chahiye, Ager Aap Ke Pass Battery Hai To Aap Ko Ye Circuit Jarur Banani Chahiye,

Kyu Ki Battery Ke Wire Short Ho Gaye To Aap Ki Battery Dead Ho Sakti Hai,

Ager Aap Is Circuit Ko Connect Karoge To Relay Power Cut Kar Degi

Aur Is Me 2 Led Lagi Hai Ager Green Led On Hai, To Circuit Se Output Aa Raha Hai,

Ager Wire Short Ho Jayge To Red Led On Ho Jaygi To Green Off

Fir Aap Ko Push Botton Ko Tap Kar Dena Hai,

Aap Is Video Me Dhekh Ke Is Short Circuit Protection Circuit Ko Bana Sakte Ho,
